programmable dc electronic load Battery Tester 150V 180A 1500W 1000w

Changzhou Tonghui Electronic Co., Ltd,
Contact Now

programmable dc electronic load Battery Tester 150V 180A 1500W 1000w

  • 1
  • 2

Color : Black

Efficiency : 90%

Input Voltage : 6-18V

Material : Aluminum Alloy

Operating Temperature : -20-50℃

Output Current : 20A

Output Power : 240W

Output Voltage : 12V

Protection Level : IP67

Rated Current : 20A

Rated Power : 240W

Rated Voltage : 12V

Size : 90x90x50mm

Weight : 0.5kg

Contact Now

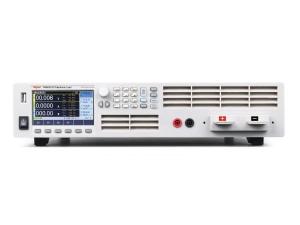

TH8404 DC Electric Load | 150V 180A 1500W Power Electronic Tester

The DC electronic load tester provides precise control over the load parameters, including voltage, current, power, resistance, and other load characteristics. Users can set specific values for these parameters to create different test scenarios and evaluate how the power source responds under varying load conditions. The ability to adjust the load parameters allows for comprehensive testing and analysis of the power source's behavior.

Features

High resolution:1mV/0.1mA

Up to 25kHz dynamic frequency

Up to 500kHz sampling speed

Low ripple and low noise

Voltage/current ripple, peak, peak-valley measurement

Voltage/current waveform display

11 kinds of operation and measurement functions

4.3-inch 24-color 480X272 TFT LCD screen, Chinese and English interface

Numeric keyboard and knob operation

Screen copy function

Remote compensation function

Intelligent fan control

Protection mode: over voltage, over current, over power

Support U disk file storage and loading, program upgrade

Software control and detection through computer

Equipped with HANDLER interface for automatic matching

SCPI command protocol

Application

Power supply

Chargers, switching power supplies, communication power supplies, LED drivers, mobile phone batteries, power banks, etc.

New energy

Solar cells, new power cars, electric bicycles

Electronic power components

Fuse/connector/relay/sensor

Automation equipment integration test

Specifications

Model Voltage Current Power
TH8401 150V 30A 175W
TH8402A 150V 30A 350W
TH8402 150V 60A 350W
TH8403 150V 120A 1000W
TH8404 150V 180A 1500W
TH8405 150V 240A 2000W
TH8411 500V 15A 175W
TH8412 500V 30A 350W
* Resolution: 0.1mV/0.1mA
* Dynamic frequency: 25kHz
* Sampling Rate: 500kHz

For the details, please download the catalogue here.

Accessary

Standard
Accessories name Model
Test Cable YT3008
Optional
Accessories name Model
High Current Test Cable TH26035D
High Current Test Cable TH26035E
