0-150v Dc Power Supply 100v 10v Dc Psu 0-30V 0-3A 90W 0-5V 0-3A 15W

Changzhou Tonghui Electronic Co., Ltd,
Contact Now

0-150v Dc Power Supply 100v 10v Dc Psu 0-30V 0-3A 90W 0-5V 0-3A 15W

Display Accuracy : ±1%+2 digits

Display Mode : LED

Input Voltage : 110V-220V

Load Regulation : ≤0.01%+2mV

Output Current : 0-10A

Output Power : 300W

Output Voltage : 0-30V

Ripple & Noise : ≤1mVrms

Size : 200*150*90mm

Storage Humidity : ≤95%RH

Storage Temperature : -20℃~+85℃

Temperature Coefficient : ≤0.01%+2mV

Voltage Regulation : ≤0.01%+2mV

Working Humidity : ≤85%RH

Working Temperature : -10℃~+60℃

Contact Now

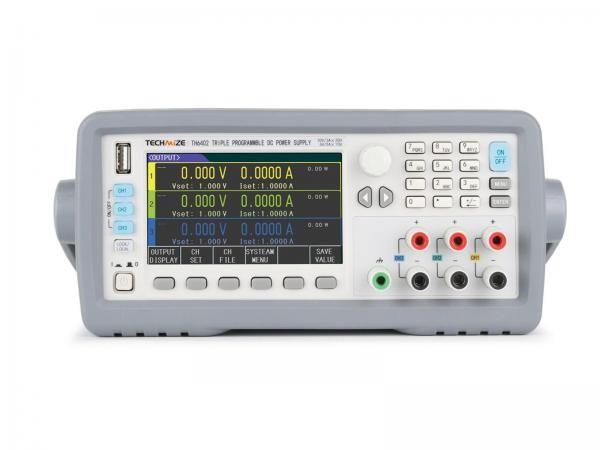

TH6402A DC Power Supply with 0-30V/0-3A/90W, 0-5V/0-3A/15W Output & Timing Output

Learn us in Youtube.

DC Power Supplies are designed to provide a stable and well-regulated output voltage. They incorporate feedback control mechanisms to automatically compensate for changes in load conditions and maintain a constant voltage output. This regulation ensures that the connected devices receive a reliable and consistent power supply, even when the load changes or fluctuates. DC Power Supplies also offer low output ripple and noise, minimizing any unwanted electrical disturbances in the output voltage.

Features

Fresh and simple system settings with Chinese and English operation interfaces

High resolution: 24-bit color 4.3-inch TFTLCD, resolution: 480 x 272

Linear design and triple channel output

High precision and high stability, low ripple and low noise

1/2 2U super mini size and output and sampling terminal on the front and rear panel

Programmable output of voltage and current

Timing output: time (0.1-99999.9s)

Three-channel independent adjustment

Simultaneously display of voltage, current, power and timing output time for three-channel

Support series, parallel or synchronous output between channels

Use rotary knob and numeric keyboard to set the voltage,current and output time

Remote measurement function, compensation for line voltage drop

Output control switch

Fully isolated circuit and support positive and negative reverse connection

Copy screen function

Over voltage protection

Intelligent temperature control fan

Support standard SCPI communication protocol

Upgrade instrument firmware via USB flash

Software monitoring via computer

Application

R & D and design verification common test

Production line table routine testing and maintenance

Automated device integration testing

Solar photovoltaic simulation test

New power car simulation test

Teaching laboratory

Specifications

Model CHs Voltage Current Power
TH6402A CH1 0-30V 0-3A 90W
CH2 0-30V 0-3A 90W
CH3 0-5V 0-3A 15W
TH6402B CH1 0-30V 0-3A 90W
CH2 0-30V 0-3A 90W
CH3 0-10V 0-3A 30W
CH4 0-5V 0-1A 5W
TH6402 CH1 0-30V 0-3A 90W
CH2 0-30V 0-3A 90W
CH3 0-6V 0-5A 30W
TH6412 CH1 0-30V 0-6A 180W
CH2 0-30V 0-6A 180W
CH3 0-6V 0-5A 30W
TH6413 CH1 0-60V 0-3A 180W
CH2 0-60V 0-3A 180W
CH3 0-6V 0-5A 30W

Accessary

Standard
Accessories name Model
Test Cable with both ends TH26004C
Optional
Accessories name Model
High Current Test Cable TH26035D
High Current Test Cable TH26035E
